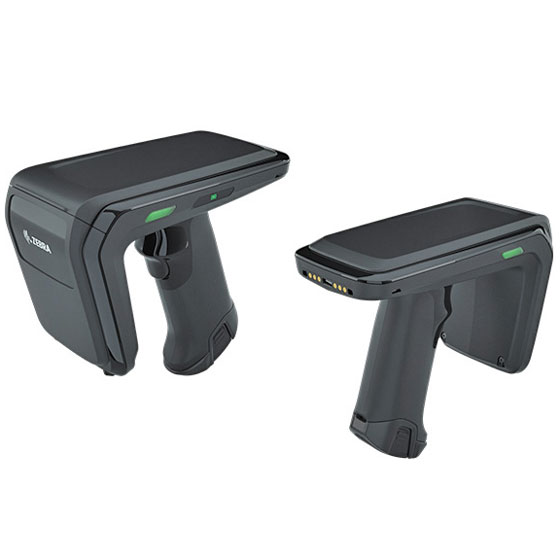

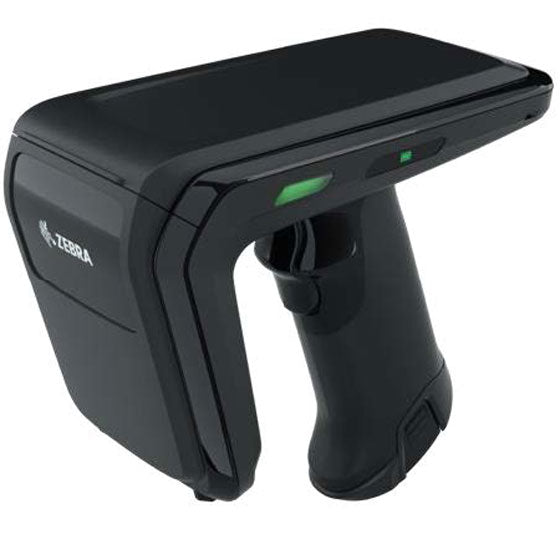

The Zebra RFD40 Sled Scanner delivers fast, accurate RFID performance for high-volume inventory and asset tracking applications. As a result, teams can capture large numbers of RFID tags quickly while maintaining reliable read accuracy in demanding environments.
Designed with Zebra proprietary RFID radio technology, the RFD40 supports rapid tag capture with read rates exceeding 1000 tags per second. Additionally, the long read range allows users to scan items from greater distances, which improves efficiency during inventory counts and warehouse operations.
Furthermore, the rugged construction supports daily use in industrial settings. The sled withstands multiple drops to concrete and features IP54 sealing for added protection. Because of the quick-release PowerPrecision+ battery, users can swap batteries easily to support extended shifts.
The RFD40 connects seamlessly to supported mobile computers using electronic and USB connections. Overall, the Zebra RFD40 Sled Scanner provides dependable performance for mobile RFID workflows across logistics, retail, and industrial environments.
-
Key Benefits:
• Fast RFID tag capture for high-volume operations
• Long read range improves scanning efficiency
• Rugged design for industrial environments
• Quick-release battery supports extended use
• Reliable performance for mobile RFID workflows
-
Specifications:
• Frequency Range (US): 902–928 MHz
• Output Power: 0–30 dBm (EIRP)
• Standards Supported: EPC Class 1 Gen 2, EPC Gen2 V2
• Nominal Read Range: ~19.7+ ft / ~6+ m
• Fastest Read Rate: 1300+ tags per second
• RFID Engine: Zebra proprietary radio technology
• Battery: PowerPrecision+ Li-Ion 7000 mAh
• Dimensions: 5.94 in H x 3.3 in W x 6.5 in L
• Weight: ~19.1 oz / 541 g
• Drop Specification: Multiple 5 ft / 1.8 m drops to concrete
• Sealing: IP54
• Host Connection: Electronic 8-pin connection, USB-C cable, USB cable cup
-
Compatibility:

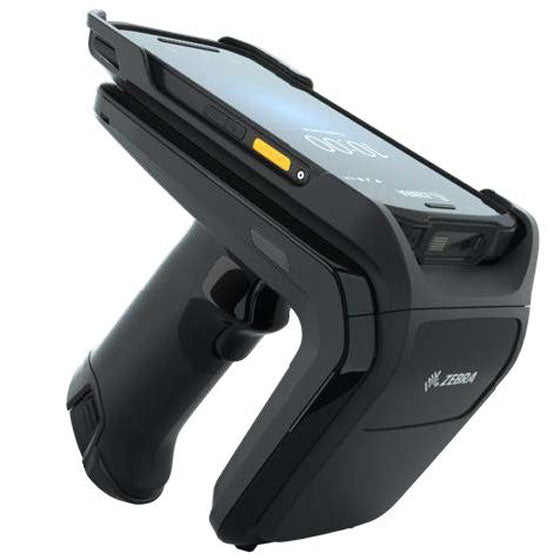

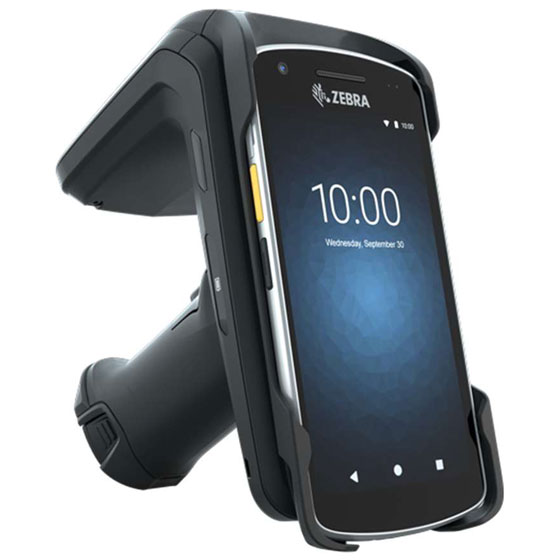

• Zebra TC26 mobile computer
• Zebra RFD40 sled adaptor
• Zebra RFD40 charging cradle
Notes:
• Warranty sold separately
• Warranty not available for online purchase
• Please call 845-709-8885 to speak with a representative
