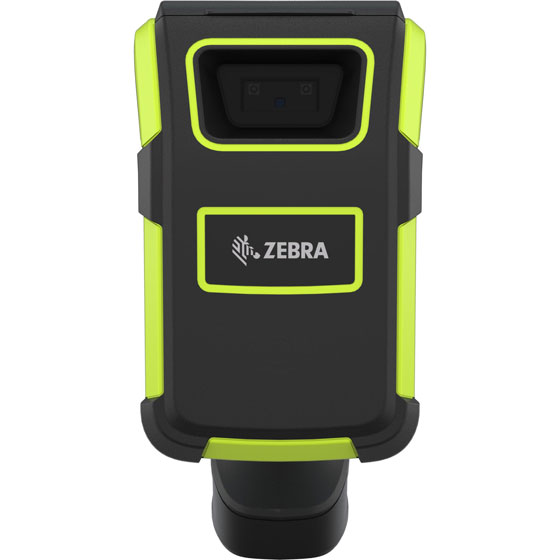

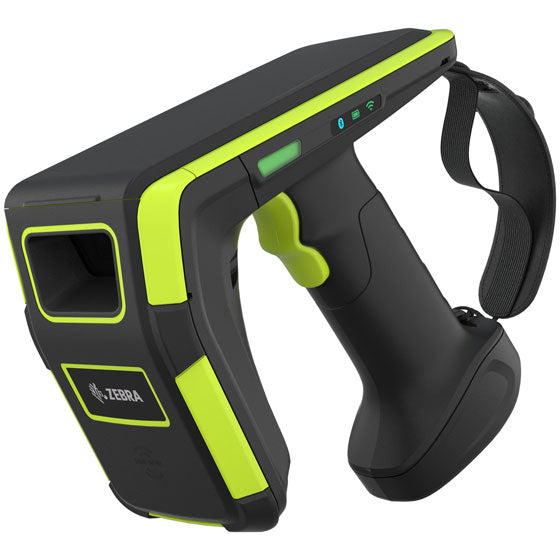

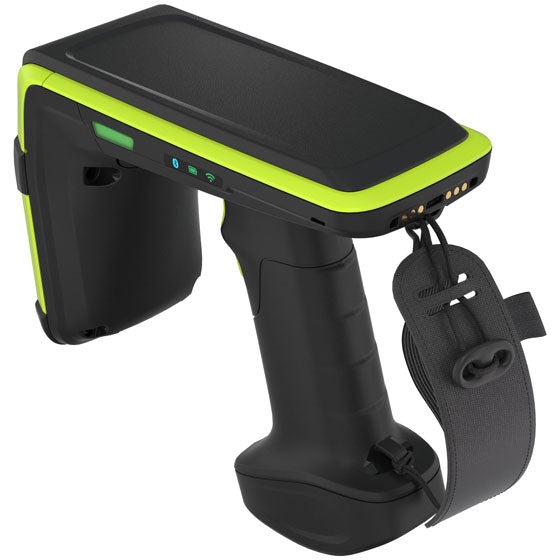

The Zebra RFD90 Sled Scanner delivers ultra rugged RFID performance for demanding industrial and outdoor environments. As a result, teams can capture RFID data reliably even in harsh conditions where durability and speed are critical.

Built to withstand repeated drops of up to six feet onto concrete, the RFD90 is designed for long-term use in logistics, manufacturing, and field operations. Additionally, the circular polarized antenna provides consistent reads across varied tag orientations, which improves accuracy during high-volume scanning.

Furthermore, the RFD90 pairs with the Zebra TC58 mobile computer to deliver powerful mobile RFID and barcode scanning in a single workflow. Because of its fast read rate and extended read range, teams can process inventory and assets more efficiently while minimizing scan time. Overall, the Zebra RFD90 Sled Scanner supports high-performance RFID operations where reliability and ruggedness matter most.

• Key Benefits:
  • Ultra rugged design for harsh environments
  • Long RFID read range
  • Fast tag capture rates
  • Circular polarized antenna
  • Quick-release battery for extended use
• Specifications:
  • Frequency Range (US): 902–928 MHz
  • Output Power: 0–30 dBm (EIRP)
  • Standards: EPC Class 1 Gen 2, EPC Gen2 V2
  • Nominal Read Range: ~22+ ft / ~6.7+ m
  • Fastest Read Rate: 1300+ tags per second
  • Battery: PowerPrecision+ Li-Ion 7000 mAh
  • Dimensions: 7.4 in H x 3.2 in W x 6.8 in L
  • Weight: ~25 oz / 714 g
  • Drop Spec: Multiple 6 ft / 1.8 m drops to concrete
  • Connectivity: Bluetooth 5.3, integrated WiFi 6
  • Barcode Scanner: Integrated SE4750MR
  • Host Connection: 8-pin connection, USB-C, USB cable cup
• Compatibility:
  • Zebra TC58 mobile computer
  • Zebra RFD90 sled adaptor
  • Zebra RFD90 charging cradle
• What’s Included:
  • Zebra RFD90 sled scanner
• Important Notes:
  • Requires RFD90 sled adaptor and charging cradle
  • Easy RFID Pro software subscription required
  • Warranty sold separately and not available online
  • Call 845-709-8885 for warranty options
